Acroprint ATRx Biometirc 1000 System

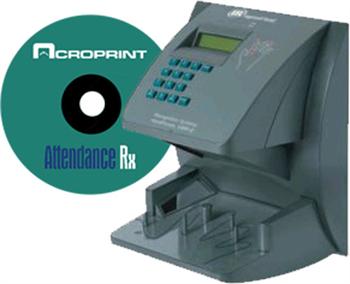

ACROPRINT ATRx Biometric 1000 KIT INCLUDES:
  *  Attendance Rx software (enabled for HandPunch biometrics)
  *  HP1000 HandPunch Terminal
  *  Power Supply for HandPunch unit
  *  communication cable
  *  Software and Hardware User Guides


FREE Download:    Acroprint ATRx Biometric 1000 Time System Brochure
.
FREE Download:    Acroprint Attendance Rx Software User Manual
.
FREE Download:    Acroprint ATRx Biometric 1000 Time System Quick Start Guide
.
FREE Download:    Acroprint HP1000 Biometric HandPunch Clock Terminal User Manual

- Single PC license or Network license (available for an added cost)
- Windows^®-based system (Windows^® Vista^™, XP^™, and 2000^™)
- Accommodates 50 employees (upgradeable to 100 employees)
- Calculates weekly, bi-weekly, semi-monthly, or monthly pay period
- Automatic overtime calculation
- 12 standard reports
- Payroll export for QuickBooks^®, ADP^®, Paychex^® and more

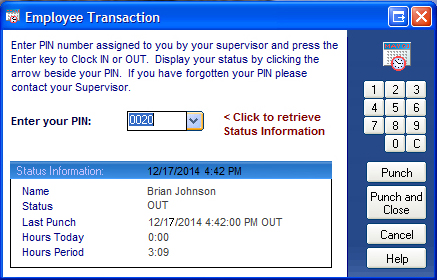

Times Entry Screen for employees to optionally punch from workstation if not using the HP1000 HandPunch >>>

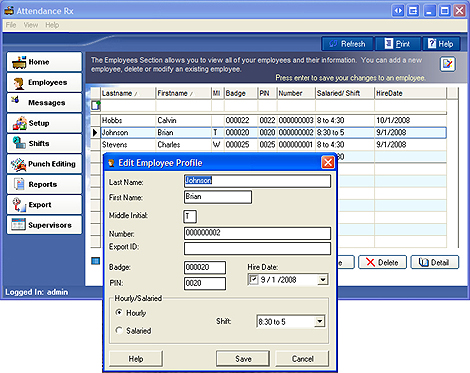

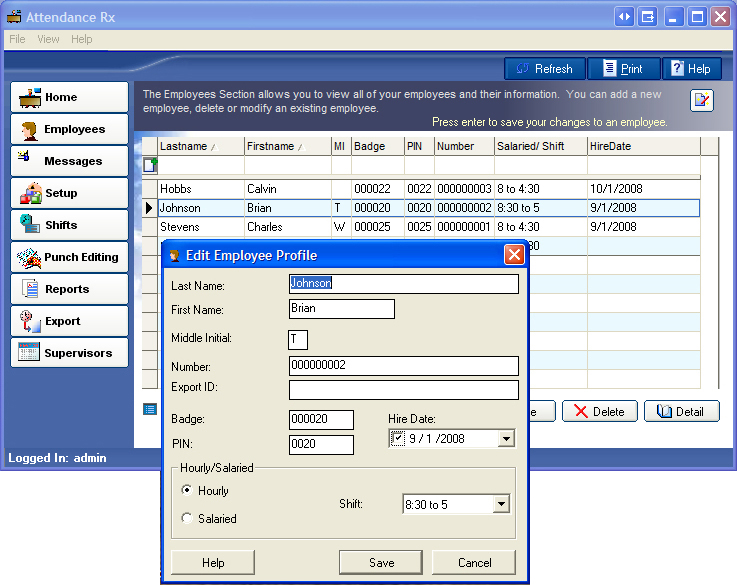

<<< Employee Information Screen maintains basic employee information

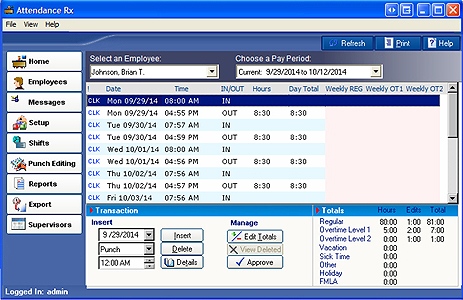

Timesheet Screen allows for basic punch addition, deletion, and editing >>>

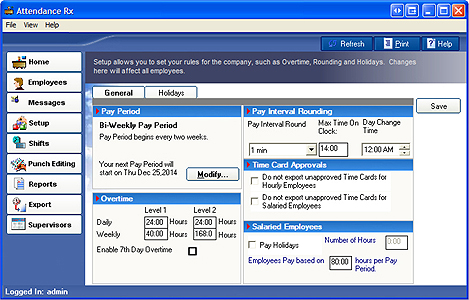

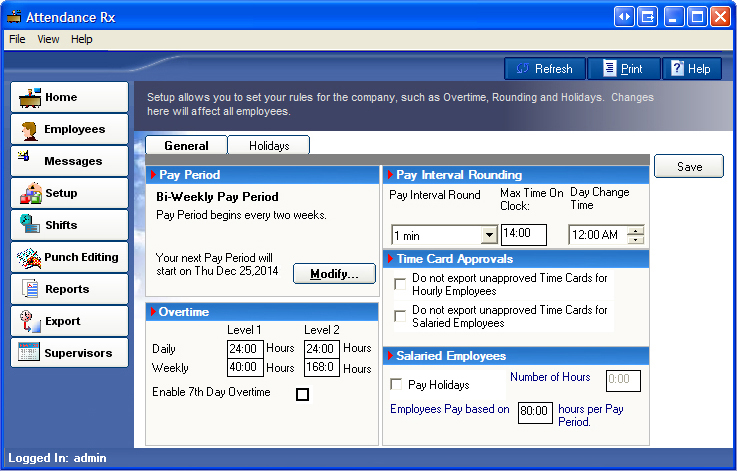

<<< Setup Screen allows for basic rule configurations to be set up

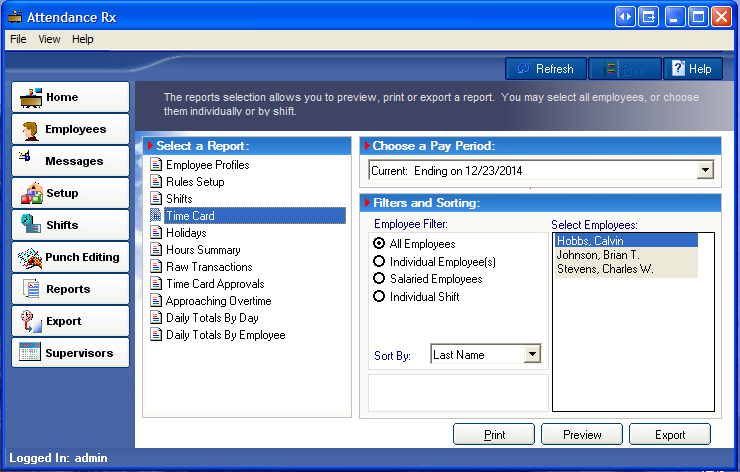

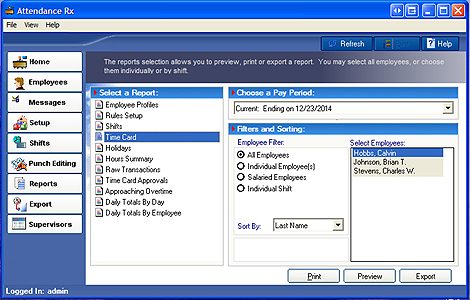

Reports Screen allows access to the system's reports >>>

User Capacity:             50 or 100 employee (based on purchased software option - single PC or network)
Transaction Storage: 5120 (transactions (cleared when downloaded to time and attendance software)
Product Height:        11.65 inches
Product Width:           8.85 inches
Product Depth:           8.55 inches
Product Weight:         6.00 lbs.
Display Type:            Digital
Battery Back Up:       Yes passive lithium battery is standard (optional full battery backup is an added option)
Voltage:                    120 volts  50/60 MHz


How a HandPunch works:
Every hand is unique. The HandPunch takes over 90 measurements of the length, width, thickness, and surface area of the hand and fingers - all in just 1 second. The technology uses a 32,000-pixel CCD digital camera to record the hand's three-dimensional shape from silhouetted images projected within the HandPunch.

The HandPunch disregards surface details, such as fingerprints, lines, scars, dirt, as well as fingernails, which may grow or be cut from day to day (addition of nail extension excluded). Because the HandPunch uses the unique shape of the users hand to verify identity, it can be used in machine shops, factories, manufacturing plants, and almost any industrial environment where fingerprint biometrics would not work properly. During enrollment, which takes approximately 30 seconds, the internal HandPunch processor and software convert the hand image to a 9-byte mathematical template, which is the average of the three readings.

When a person uses the HandPunch, it compares the shape of the user's hand to a template recorded during an enrollment session. If the template and the hand match, the HandPunch produces an a transaction record. The user's template may reside in internal memory of the HandPunch, who's employee capacity is independent of the time and attendance software's employee capacity. (check unit's specifications and optional memory upgrade option for larger employee capacity upgrades).

Among biometric technologies, hand geometry has the highest user acceptance. With the highest level of accuracy and ease of use, the HandPunch has become the most widely accepted biometric technology in use today.

- PC with Pentium^® II 400 MHZ or higher
- 128 megabytes of RAM
- 150 MB of free space on the PC's hard drive
- CD-ROM
- Available RS232 communication 9-pin serial port or USB slot [with addition of optional serial to USB adapter])
- Monitor and video card capable of 800 x 600, 256 SVGA resolution
- Mouse or other pointing device
- Windows^® Vista^™ Business or Enterprise, Windows XP^™ Professional or Home,  Windows Server^™ 2003, Windows 2000 Professional
- Attached printer for hard copy reports
